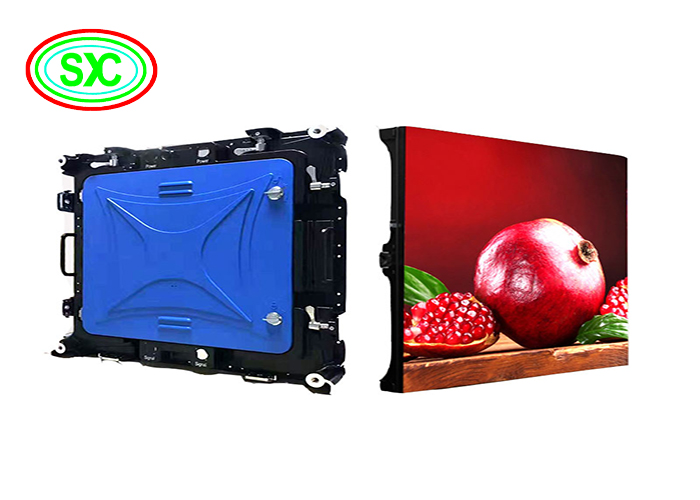

1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM

Shenzhen ShiXin Display Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM

Brand Name : SCXK

Model Number : P6

Certification : CE/ROHS/FCC/ISO/UL

Place of Origin : China

MOQ : 1sqm

Price : negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000sqm per month

Delivery Time : 5-8 working days

Packaging Details : wooden case or flight case are available.

Usage : Outdoor

Display Function : Video

Pixels : 6mm

Screen Dimension : Custom Made

Brightness : ≥6500cd/sqm

Driving Mode : 1/8 Scan

Life span : 100000hours

Certificate : CE ROHS FCC

Contact Now

1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM



Module Parameter

Pixel pitch 6mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 192x192mm
LED lamp KingLight or Nationstar
Module resolution 32x32dots
Module quantity per cabinet 9pcs


Cabinet Parameter

Cabinet size 576x576mm
Cabinet material die casting aluminum
Cabinet weight 6.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 111,111 dots/m²
Brightness ≥1500 cd/m²
Viewing angle H140° V140°
Min.viewing distance 6m
Max.power consumption 700W/m²
Avg.power consumption 200W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥480frames/s
Refresh rate ≥900Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.


Standard Cabinet
1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM

The customer show
1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM
Certificate
1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM
1R1G1B Outdoor LED Display Full Color P6 P8 P10 Standard Waterproof Cabinet 960*960 MM

Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
